產品說明
●六面鉆孔 Artifacts six sides drilling
●正反面開槽 Front and back card slot
●雙頭鉆銑 Double head drilling and milling
●兼容xml、mpr等 Compatible with XML, MPR, etc
●拆單軟件無縫對接 Teardown software seamless docking
●掃描條碼，無需編程 Scan bar code without programming
細節描述
性能參數

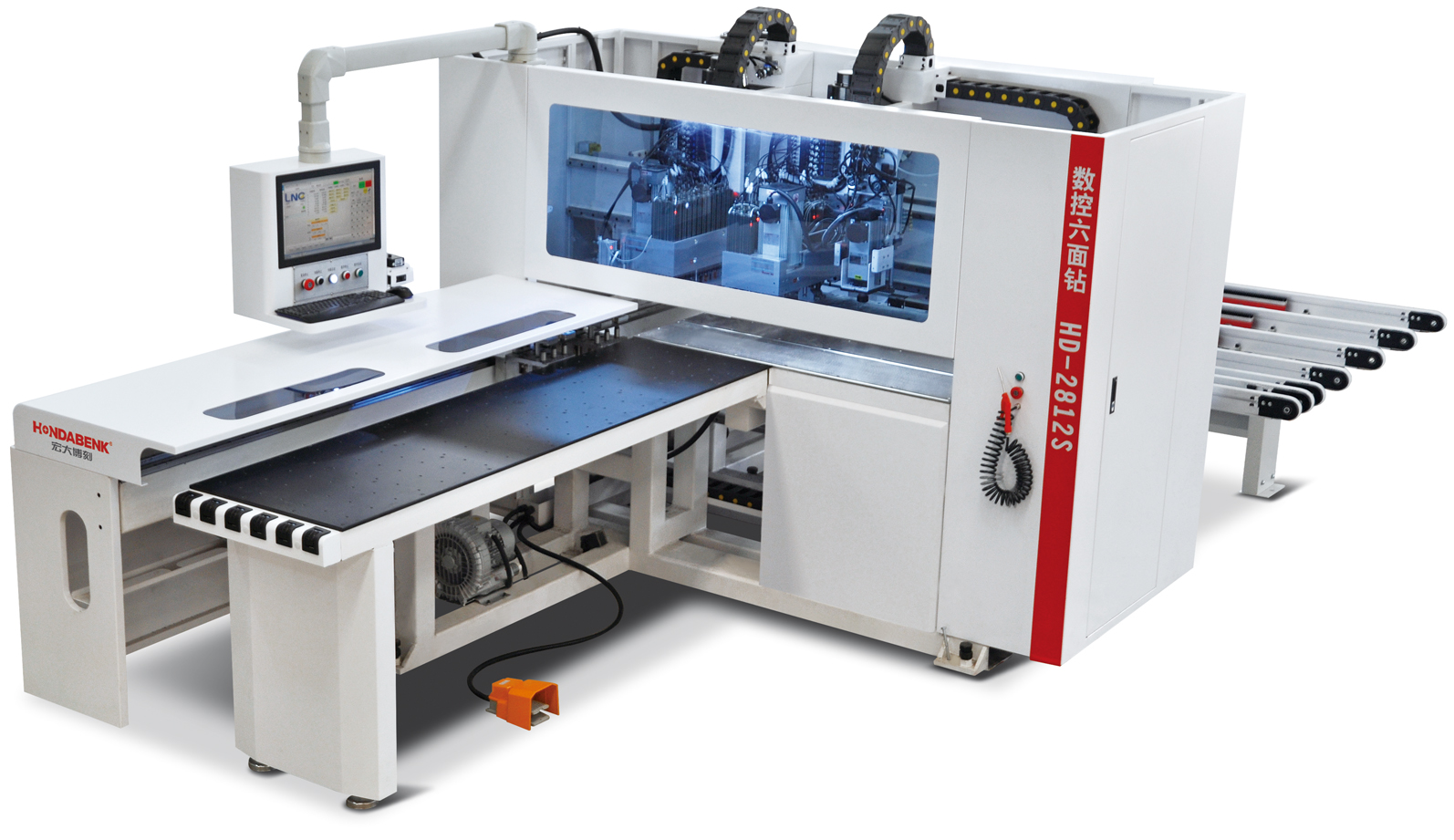

| 型號Model | HD-2812S |
| 板材長度Plank length | 200~2440mm |
| 板材寬度Plank width | 50~1220mm |
| 板材厚度Plank thickness | 9~50mm |
| 空移速度(X/U/Y/Z)Empty moving speed | 120/120/75/30m/min |
| 總功率Total power | 25KW |
|
主軸功率Spindle power |
3.5KW×2 |
|
主軸轉速Spindle speed |
18000r/min |
|
上排水平鉆Horizontal drill |
X:2×4 Y:2×2 |
| 上排垂直鉆Vertical drill | 12×2 |
| 下排垂直鉆Vertical row drill | 9 |
| 排鉆轉速Drilling speed | 4000r/min |
|
|
|
